Resource allocations - time indicators on planboard
Resource allocations on the planboard have a top bar with a dynamic display to indicate how many hours are planned, assigned and remaining. The hover-over tooltip shows further time details within the resource allocation.
The following example shows a resource allocation on the planboard with a top bar consisting of a solid part, a combined dotted/solid part, and a dotted part. The various parts represent the different types of work assignment hours within the allocated period:

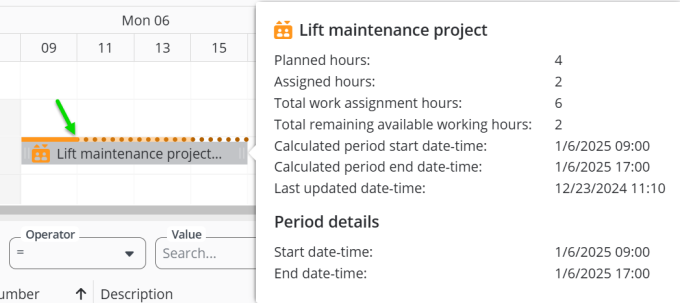

Screen capture of a resource allocation on the planboard, with various types of hours shown on the top bar
In the above example, the total number of hours in the resource allocation period is 8, of which 4 hours are Planned and 2 Assigned. That leaves 2 remaining Available hours for any additional work.
Refer to this legend for the meaning of the various line representations in the top bar:
Legend of indicators in the top bar of a resource allocation period
