Adding a Rule

Procedure

1. In the left pane of the IoT Platform Portal, click the

button.

A window displaying the list of rules currently defined in the system opens.

2. Scroll down to the bottom of the rule list and click the

button.

The following window displays: Screen capture displaying the New Rule window

This window contains four tabs General, Time, Conditions and Actions.

3. In the General tab fill the fields, which specifies general characteristics of the Rule.

Screen capture displaying the General tab of New Rule window

An asterisk (*) indicates a mandatory field.

Field	Description
Name	A free-text field specifying the name of the Rule.
Description	A free-text field providing a description of the Rule.
Rule generates an alarm of severity	Select the check box for the Rule to generate an Alarm of a particular severity. In the adjacent drop-down list, select the applicable Alarm severity: • Warning • Minor • Major • Critical • Information See also: Rules & Alarms.

4. Click the Next button to move to the Time tab in the window or click the Time tab.

5. In the Time tab, you can specify when the Rule is to be activated, and whether it is activated for a specific time period or based on a defined schedule. By default, a Rule is activated all day, every day.

6. Specify the following fields to define when the Rule is to be active:

Field	Description
Timezone	Specify the time zone that applies to the Rule.
Rule Activation Type	This field determines whether the Rule is activated for a specific time period or based on a schedule, as follows: • Period – Specifies the time period when the Rule is active. The condition(s) of a Periodic Rule are only checked during the particular days and times that you specify. If they are met, then the action defined for the Rule is triggered. For this type of Rule, each time an event arrives within the defined time period that crosses the threshold specified in the Rule’s condition, the Rule is activated.

	• Schedule – For a Scheduled Rule, you specify the frequency, day(s) and exact time when the Rule’s condition(s) are checked. If the conditions are met at this exact time, then the Rule action is triggered. If no condition(s) are defined the Rule action will be triggered at the scheduled Set Hour. Setting this rule to be active Daily, Weekly or Monthly means that the condition(s) is checked Daily, Weekly or Monthly. You can add additional times when the Rule is meant to be active by clicking the button, and then specifying the time in the new Set Hourrow.
	Daily In the following example, the condition(s) are checked once a day at 10:00. Weekly In the example below, the condition(s) are checked on Sundays and Tuesdays at 10:00 and 11:00. Monthly In the example below, the condition(s) are checked on the first of the month for January, March and May at 10:00 and 11:00.
	• Relative - For a Relative Rule, select the device(s) which contain the booking information in the Get Data From field (devices with the Calendar tab) and specify the time relative to the booking in which the action is to be triggered. Example: Fifteen minutes before start of meeting. Get Data From – Specify the calendar device, and the rule apply to (All the meetings will be taken from the device calendar). Activate Rule – Specify when to run the rule. You can trigger the rule X minutes before or after meeting (Apply for all the meetings).

7. Click the Next button to move to the Conditions tab in the window or click the Conditions tab.

Screen capture displaying Condition tab selected in the New Rule window

8. Click the

button.

The following window displays: Overview of the new condition window

This window contains several boxes. Each box represents a different type of condition that can be defined for a Rule. The following condition types can be defined:

◦ Threshold – The Device reading is different than a specific reading.

◦ Threshold with Duration – The Device reading is different than a specific value for a defined amount of time.

◦ Entered Geofence – The Device entered a predefined geolocation.

◦ Exited Geofence – The Device exited a predefined geolocation.

◦ In Geofence with Duration – The Device entered a predefined geolocation for a defined amount of time.

◦ Out of Geofence with Duration - The Device exited a predefined geolocation for a defined amount of time.

◦ Instantaneous – An event type reading, (or instantaneous) reading occurred.

◦ Compare Readings – Compare two different readings values from the same or two different devices.

Some conditions are standalone conditions and cannot be used with additional conditions, these include:

◦ Conditions that target multiple things (app/product/group template/multiple devices/multiple digital twins) cannot be combined with other conditions.

◦ Cannot have multiple duration conditions (can have one duration and one non duration condition)

◦ Compare readings condition cannot be combined with other conditions.

All condition types are defined in a similar manner.

9. Click a box in the window to define that type of condition. For example, the following describes how to define a Threshold condition type.

Threshold –

For this type of condition, set the following properties:

Overview of the Threshold condition options

An asterisk (*) indicates a mandatory field.

Field

Description

Condition Name

Specifies a name for the condition.

Condition Level

Specifies the type of entity on which the Rule’s action is to be performed such as; an Application, Device or Product. Note that some condition types only apply to the specific entities. For more details.

The Condition Level for the Threshold with Duration, In Geofence with Duration and Out of Geofence with Duration condition types can be set for the:

• Application

• Device

• Product

• Digital Twin

• Group template

The Condition Level for the Threshold with Duration, In Geofence with Duration and Out of Geofence with Duration condition types can also be set for multiple devices simultaneously.

• Devices – Specifies the Device(s) on which to apply the condition.

• Data – Specifies the property or Event identifier (Event Name plus Type Code) that triggers the Rule. The properties in the drop-down list vary, depending on the Condition Level selected (see above). For example, if the Condition Level is Application, then only properties of an Application will display.

Screen capture displaying the properties of an application

The Events in the drop-down list specify the name of the Event for the Application ID/Product/Device on which to apply the condition. IoT Platform works on a combination of the Event Name and Type Code to uniquely identify an Event.

Product properties correspond to additional Properties in the Products API endpoints.

• Operator - Specifies the operator to apply to the data selected in the Data. The options that display in the drop-down list vary, depending on the data selected in the Data field.

screen capture displaying the two examples of selection criteria in Data field

• Value - Specifies the value that triggers the condition.

Screen capture displaying the Value field

10. After specifying all required fields for the condition, click the Done button. The condition displays in the list of conditions in the Conditions tab.

You can add multiple conditions in a Rule. In such cases, there is an OR relationship between the conditions.

For example, the following describes how to define an Instantaneous condition type:

Instantaneous –

For this type of condition, set the following properties:

Screen capture displaying Instantaneous condition window

An asterisk (*) indicates a mandatory field.

Field	Description
Condition Name	Specifies a name for the condition.
Condition Level	Specifies the type of entity on which the Rule’s action is to be performed, such as an Application, Device or Product.
Readings	Specifies the reading that triggers the event.

11. After specifying all required fields for the condition, click Done.

The condition displays in the list of conditions in the Conditions tab.

Compare Readings – For this type of condition, set the following properties:

Screen capture displaying Compare Readings condition window

Field	Description
Condition Name	Specifies a name for the condition.
Device	Specifies the device to apply the condition.
Device Reading	Specifies the device reading for the condition.
Operator	Specifies the operator to apply to the data selected.
Difference	Add operation for the second device reading value , (i.e. Difference Multiply 2 will be equal to Temperature from room 1 is greater than twice the temperature in room 2).

12. After specifying all required fields for the condition, click Done.

The condition displays in the list of conditions in the Conditions tab.

13. Click the Next button to move to the Actions tab in the window or click the Actions tab:

Screen capture displaying the Actions tab in New Rule window

On this tab, you define the action to be performed once the Rule condition has been met.

14. Click the

button. The following window displays:

Screen capture displaying add actions window

This window contains several boxes. Each box represents a different type of action that can be defined for a Rule.

All action types are defined in a similar manner. Click a box in the window to define that type of action.

The following types of actions can be defined:

◦ Send SMS

For this action type, set the following properties:

Field	Description

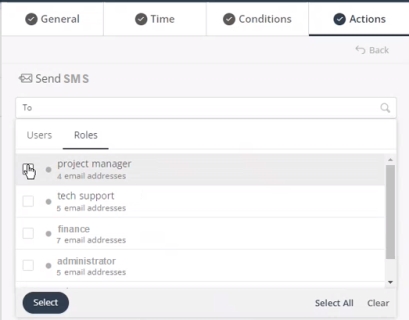

To	Clicking in the To field allows you to specify the recipient(s) for receiving the SMS. Here, you can select: • Users to send the notification to individual people by selecting the application users, or by adding a specific phone number/address. • Roles to send the notification to a group of people. • A combination of the above (Users & Roles).
Message Content	Specifies the content of the SMS message to be sent. The system automatically populates the keywords and the message content according to the Rule you have defined. You can manually add text and keywords, or edit the message, as needed. Alternatively, you can select from the available keywords in the system by typing a curly bracket ({ ), and then selecting a relevant keyword in the drop-down menu that displays, as shown below:
	IoT Platform keywords can be included in the message inside brackets {}. These keywords enable you to include information retrieved by IoT Platform in the message. 1. Restore to Default Message – Click this button to restore the Message Content to its default message. 2. Rule action will repeat – Specifies the number of times to repeat the Rule action and the interval between repetitions. 3. Rule Description – Provides a free-text description of the Rule.

◦ Send email

The properties that you define for this action type are the same as those for the Send SMS action type.

◦ Call

The properties that you define for this action type are the same as those for the Send SMS action type.

◦ Send to Web Service

The IoT Platform web service can link to any endpoint system as a result of a rule action. The web service is sent from a closed group of static IPs to ensure proper integration with the system that requires an IP white list.

The static IPs used vary, depending on the environment. When developing in the Staging environment, one of the following IPs is used – 52.166.49.187, 40.114.142.65, 40.115.40.56 or 168.63.100.144. When developing in the Production environment, one of the following IPs is used – 40.115.24.132, 104.40.177.115, 40.68.148.115, 40.115.46.91, 40.118.80.207 or 168.63.100.144.

For this action type, set the following properties:

Field	Description
Method	Specifies the method of the web service: • GET • POST • PUT • PATCH • DELETE • HEAD
URL	Specifies the URL to which to send the call.
Headers	Click the plus button to add the key and value properties of the header. These are the key/values that are sent as HTTP headers. The key becomes the header key and the value becomes the header value
Body	Specifies the body of the HTTP call. You can click the Test button after filling in this field to perform a live test.
Response	Specifies the response received to the HTTP call. You can view the response after doing a live test (see above).
Rule Description	Free text describing the Rule.

◦ Send Command to Device

For this action type, set the following properties:

Field	Description
Devices	Specifies the Device to which to send the command.
Commands	Specifies the command to send to the Device.
Rule actions will repeat	Specifies the number of times to repeat the Rule action and the interval between repetitions.
Rule Description	Provides a free-text description of the Rule.

◦ Change Device Settings

For this action type, set the following properties:

Field	Description
Devices	Specifies the Device whose settings are to be changed.
Settings	Specifies the setting to change on the Device.
Value	Specifies the new value to assign to the setting on the Device. You can add “ +, -, * ,/ ” so that the property will increment by.

All other action types are not currently supported.

After specifying all required fields for the action, click Save. The Rule is then added to the rule list.
