Configuring Keycloak
 | The following Keycloak configuration is an example only. No rights can be derived. Screenshots and example may differ from your situation. If you need assistance in setting up your local specific configuration of keycloack, please contact your account manager. |
Take the following steps to configure Keycloak.
1. In the menu on the left panel, select Identity Providers (IdP).
2. Select SAML in the list to modify the preconfigured settings.
3. Modify the details in the data section, you can configure the settings here (the Redirect URI is automatically set for you):
4. The information for the fields under SAML Config need to be provided by the customer.
These are the details of the Identity Provider (IDP) on the Production environments (and recommended on Non-Production environments):
◦ Want Assertions Signed must be ON
◦ Validate Signature must be ON.
5. Click Save to add the configuration to the Identity Broker solution.

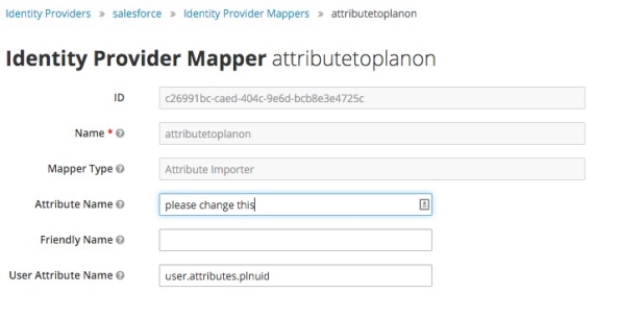

6. Click the Mappers tab. Click on attributetoplanon.
7. Modify the Attribute Name with the correct IDP SAML attribute.
This will also be provided by the customer.
Do not fill the field Friendly Name and do not modify the field User Attribute Name.
8. Click Save to activate the updated attribute mapper to the configuration.
Replacing the certificate
For enhanced control over their own Cloud environments, customers can further tweak single-sign-on configuration.
| | The following Keycloak configuration is an example only. No rights can be derived. Screenshots and example may differ from your situation. If you need assistance in setting up your local specific configuration of keycloack, please contact your account manager. |
1. In the Environment Management gadget > SSO tab, log on to Keycloak by clicking the Identity broker URL.
The Keycloak console appears.
2. In the left panel, select Identity Providers (IdP).
3. Select SAML in the list to modify the preconfigured settings.
4. Create a backup of the data in the fields Single Sign-On Service URL and Validating X509 Certificates.
5. Replace the values in these fields with the Single Sign-On Service URL and X509 Certificate provided by the Identity Provider.
6. Click Save.
The changes are active directly and can be tested immediately. To do this, close the browser completely and open a new session to validate the login.
 | For more information on configuring Keycloak, see Keycloak's Server Administration Guide. |
Rollback
Should the credentials provided in the fields Single Sign-On Service URL and Validating X509 Certificates not function correctly for any reason and the previous values need to be reinstated, replace the values with those you backed up earlier. This will reactivate the former settings.
Rearranging the mappers
After configuring the identity provider, please make sure the mappers for the Planon client are in the correct order.
To find and check the current order of mappers, proceed as follows:
1. Click on Clients in the left panel, and click on the Planon client.
2. Open the Mappers tab, and make sure the order is:
◦ username
◦ plnuid
Example
If these mappers are not in the correct order, delete and recreate them in the correct order. (You may need to do this a couple of times to get it right).
Service Provider metadata
| | The following Keycloak configuration is an example only. No rights can be derived. Screenshots and example may differ from your situation. If you need assistance in setting up your local specific configuration of keycloack, please contact your account manager. |
You must also send some details on SSO - the Service Provider Metadata - to the customer. If there are any configuration changes in the metadata, they can be exported via the Identity Broker solution.
1. In the menu on the left panel, select Identity Providers (IDP).
2. Select the Identity Provider just created.
3. Click the link in the Endpoints field.
It may not directly be apparent that this is a link, but if you hover over the field, the URL will be displayed at the bottom of your browser.
Clicking the link opens the metadata page in your browser:
4. Share this URL with the customer IDP administrator to establish a trusted relation between IDP and the Service Provider.
If the logon page is enabled, you can still automatically be redirected to the desired IDP by adding the following parameters to the URL:
?kc_idp_hint=<IDP Alias>
Example
https://customer-prod.planoncloud.com/?kc_idp_hint=saml
If a redirect to the default IDP is enabled, you can go to the login page by entering a different value.
Example
Custom domain allowance
When adding a custom domain to your Planon Cloud environment additional configuration needs to be done in Keycloak to be able to use Planon via the custom domain in combination with Single Sign on.
Take the follow steps to configure Keycloak.
Procedure

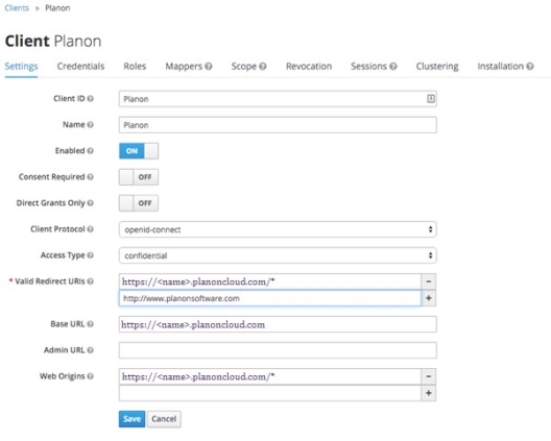

1. In the menu on the left panel select Clients.
2. In the list that is displayed, select Client ID Planon.
3. Add the Custom Domain URL in the Valid Redirect URIs by typing the URL followed by /*
4. Click Save to add the redirect URL.
Logging out of Planon Cloud
This URL makes a user log off from Planon, sends a log off request to the Identity Broker solution and redirects the user to the given redirect URL.
The redirect URL must be configured in Identity Broker solution.
Procedure
1. Login to the Identity Broker solution.
2. On the left side, select Clients.
3. Select Planon.
4. Add the value of the redirect URL in the Valid Redirect URIs by typing the URL followed by /*
5. Click Save to add the redirect URL.
| | Note that logging out of Planon Cloud but not from IDP only works if you do not configure a Single Logout Service URL on the Identity Provider page. |
KeyCloak secure configuration considerations
This section lists a number of security considerations that can enhance your security level when using Planon Single Sign On (SSO).
| | Please be aware that these configuration settings are considerations that highly depend on the customers' requirements, their Identity Provider and the security policies within the customers' organization. Only IT staff that is trained in these configurations should deploy these considerations or contact Planon for consultancy. |
Authentication
External identity provider
When delegating authentication to an external identity provider (IdP) you should consider the following:
Subject | Description |
|---|---|
Local account password | When a user logs in using an external identity provider, KeyCloak will create an account in it’s local store. By default, it is possible for users to set a password on this account and use the user name and the KeyCloak local password to login. As this bypasses the external identity provider, this may be undesired. This behavior can be disabled at two places: • Configure > Authentication > Required actions and disable Update password. When this is disabled, users can no longer set the password on the local KeyCloak account. • Configure > Authentication > Flows > Browser and disable the forms. When this is disabled, the password screen can no longer be used. Please be aware that this option will also disable all local keycloak accounts just as supervisor. |
Forcing external IdP login | What also could be considered is to make the login via an external IdP mandatory in the browser flow by setting the Identity Provider Redirector to required; this way, you cannot authenticate against other sources than your own IdP. This can be configured by going to: Configure > Authentication > Browser and configure the Identity Provider Redirector as Required. |
Using Planon user federation
It is possible to authenticate using the Planon system as an authentication source. Credentials entered in the KeyCloak user name and password fields are validated against the Planon credential store.
Subject | Description |
|---|---|
Local account password | When a user logs in using the Planon user federation, KeyCloak will create an account in it’s local store. By default, it is possible for users to set a password on this account and use the user name and the KeyCloak local password to login. This bypasses the Planon user federation check so this may be undesired. This can be configured by going to: Configure > Authentication > Required actions and disable Update password. When this is disabled, users can no longer set the password on the local KeyCloak account. |
KeyCloak local account password
Subject | Description |
|---|---|
Password policy | When using the local KeyCloak passwords, it is advised to set a password policy. This can be done in: Configure > Authentication > Policies > Password policy. Here, you can add policies for the different aspects of the passwords. Planon recommends setting the password policy in accordance with your organization's security policies. |
Brute force protection | Brute force detection will be enabled by default. However, customers can set up their own metrics if desired. The Brute force detection settings can be found under: Configure > Realm settings > Security defences > Brute force detection |
General settings
Subject | Description |
|---|---|
Multi-factor admin | We strongly recommend to set up multi-factor authentication on the admin account. This can be done by: User name (top right of your screen) > Manage account > Account security > Signing in > Two-factor authentication |
Security headers | Customers can set up their own security headers if desired. The security headers settings can be found under: Configure > Realm settings > Security defences > Header |
