Solution vision
This overall vision for how Planon and SAP concepts should work together on additional domains / modules of Planon, is currently being planned.

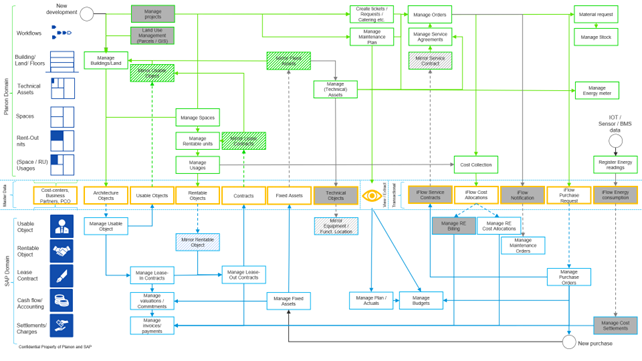

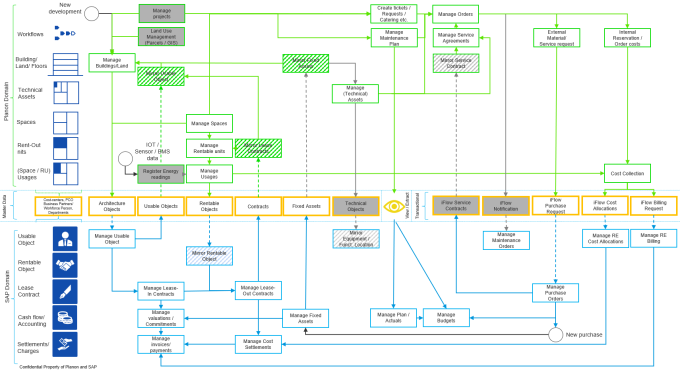

Conceptual functional vision on the integration
 | Grey items are currently not available or at least not completely. |
The SAP BTP offers:
• Master Data Integration (MDI)
• Integration Flow (iFlow)
In the MDI, all objects are part of the SAP One Domain Model (ODM) and can be either provided or consumed by Planon or SAP. MDI is intended for mostly static data that does not change frequently and is therefore not suitable for transactional data such as orders or costs.
For transactional data, the BTP has the possibility to use iFlows which can automate additional data transfers between Planon and SAP. For iFlows to work, exchanged data must be enriched with relevant master data that is provided by SAP via the BTP. For example, an order must be linked to a cost center of SAP to be able to create a cost allocation.
As part of the solution vision, iFlows are available to process the data linked to, for example, orders and energy consumption.
The integration between Planon and SAP BTP is handled by the SAP integration app and is included in the SAP Real Estate and Facilities Management by Planon solution.
